Technical characteristics

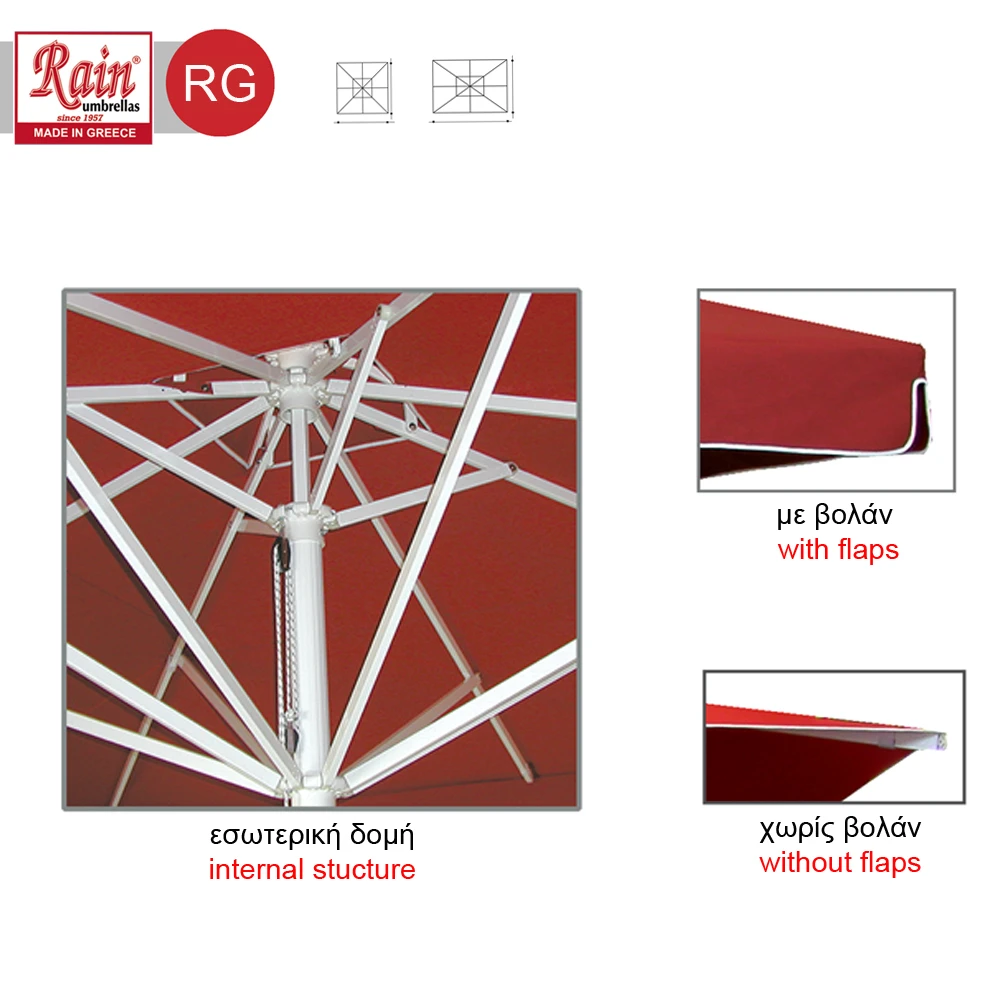

- pole Φ 90×5 mm with nerve reinforcements
- easy opening system with 3 pulleys and cord
- ribs 40x20x2 mm oval shape, with nerve reinforcements inside, to avoid tearing cloth
- stainless steel metal parts
- fabric polyester DAS & acrylic DICKSON
- available with flaps or without flaps
Technical characteristics
- pole Φ 90×5 mm with nerve reinforcements
- easy opening system with 3 pulleys and cord
- ribs 40x20x2 mm oval shape, with nerve reinforcements inside, to avoid tearing cloth
- stainless steel metal parts
- fabric polyester DAS & acrylic DICKSON
- available with flaps or without flaps
Size available
round
- Φ 3,5-4,0-4,5-5,0 mt
square
- 3,5×3,5 mt – R 35
- 4,0×4,0 mt – R 60
- 4,5×4,5 mt – R 45
- 5,0×5,0 mt – R 70
rectangular
- 3,0×3,5 mt – R 30X35
- 3,0×4,0 mt – R 3X4
- 3,0×4,5 mt- R 30X45
- 3,5×4,0 mt – R 35X40
- 3,5×4,5 mt – R 35X45
- 3,5×5,0 mt – R 35X50
- 4,0×4,5 mt – R 40X45
- 4,0×5,0 mt – R 4X5
- 4,5×5,0 mt – R 45X 50
- 4,0×6,0 mt – R 4X6
Bases
Art. A 1080-90 metal base for pole 80-90 mm, metal plate 25x25x0.8 cm

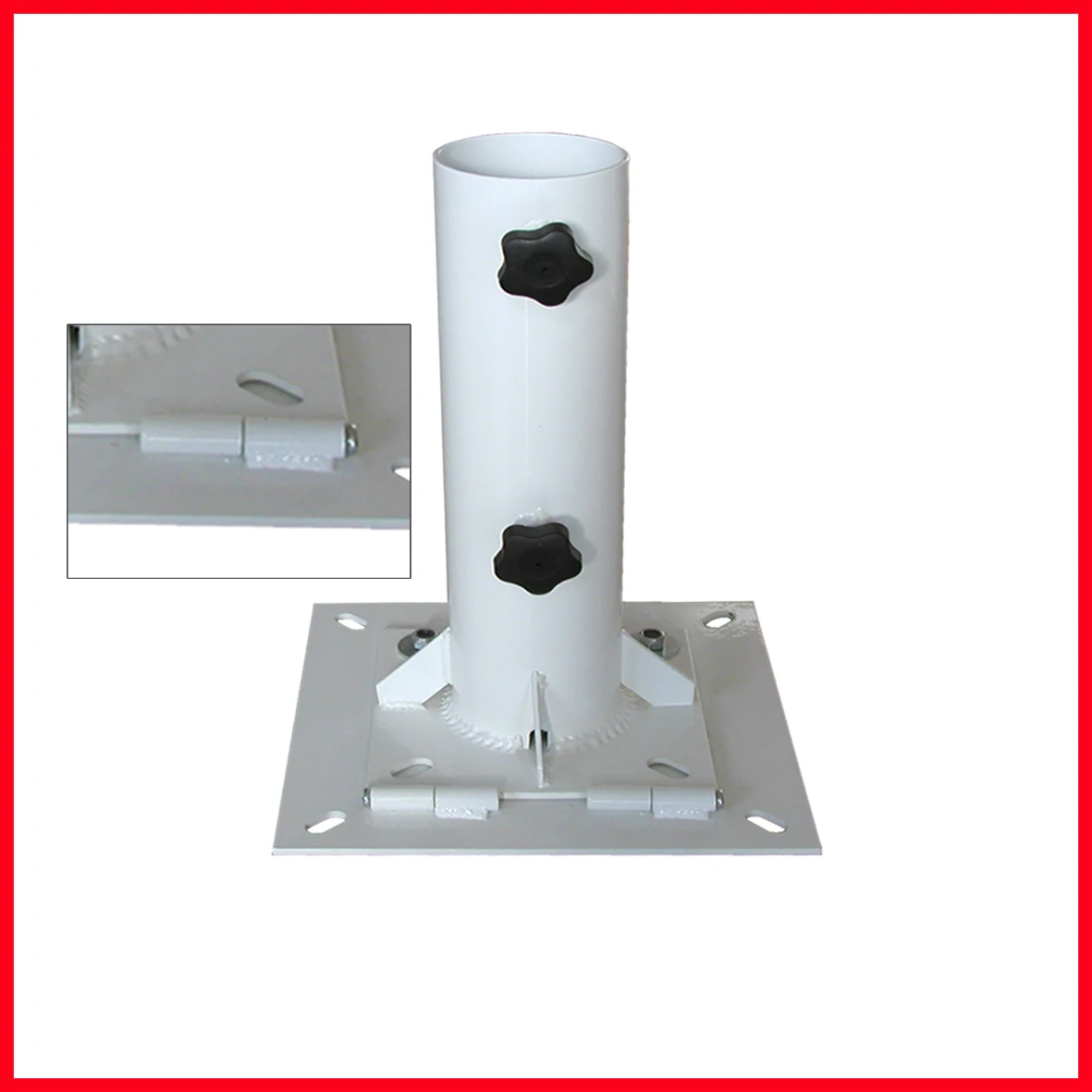

Art. A 1080-100 metal base for pole 80-90 mm, metal plate 30X30X0.8 cm

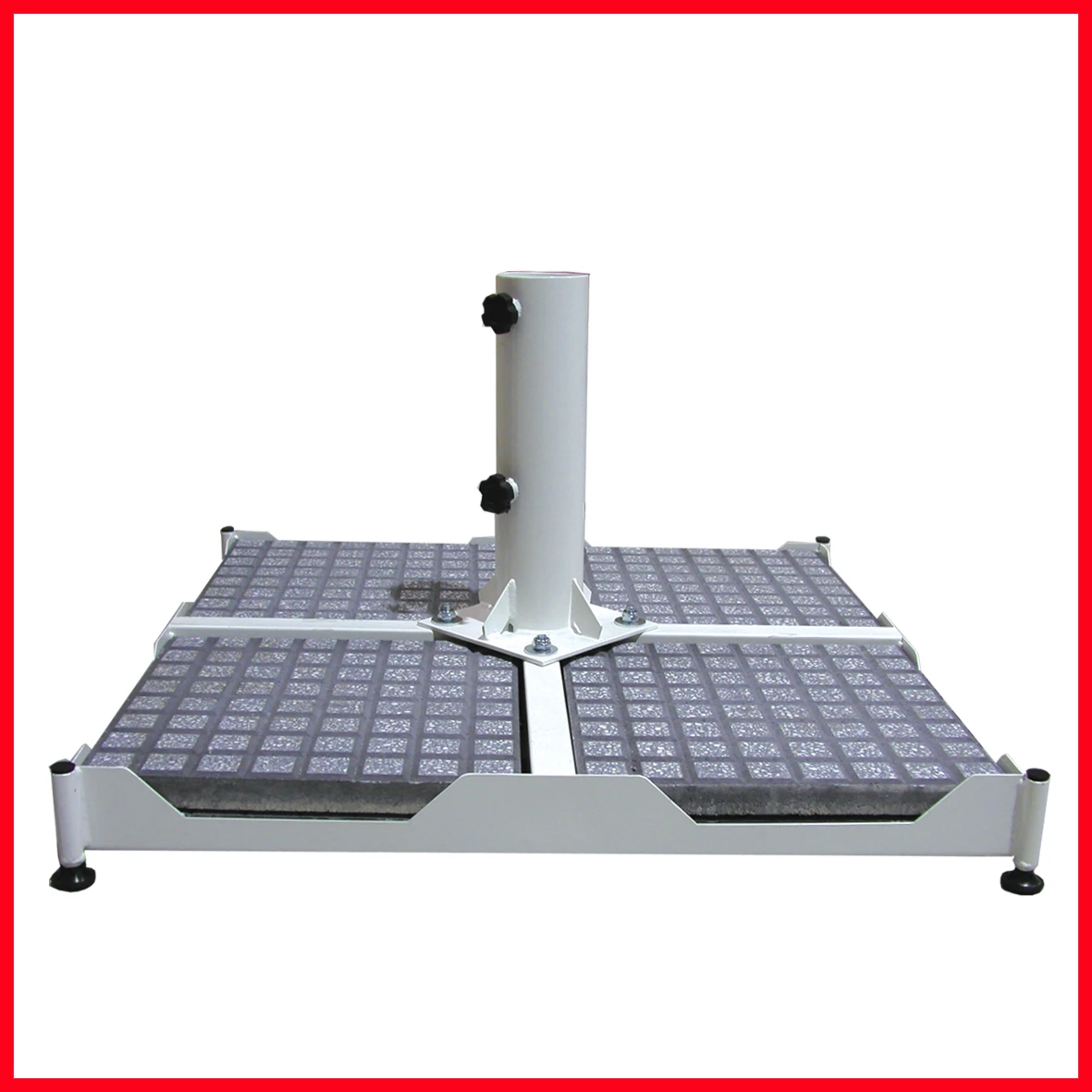

Art. A 1090 metal base 88X88 cm 40x40 cm for pole 80-90 mm 120-170 Kgr
Colors available
